Electronic Assembly Winder model SESB

Electronic Assembly Winder model SESB
SIMET electronic Assembly Winders with grooved drum in hard anodized aluminum of superior quality are very versatile and permit to wind the most of the yarns without even damaging the yarn final quality.

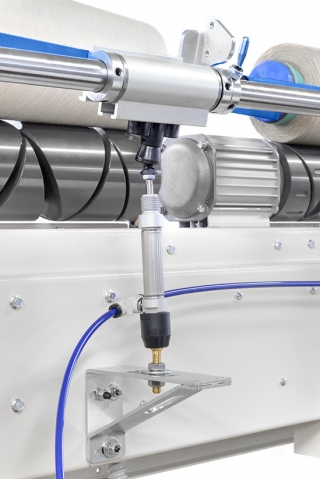

Speed can be adjusted electronically, the different radial anti patterning system, the pneumatic counterweight, the sliding of the cone holder and all yarn passages protected by ceramic, guarantee the achievement of excellent results for what concerns productivity, quality of the packages and of the yarn itself. In case of stop, the electronic braking of the grooved drum (adjustable) avoids that the package keeps on turning by inertia. The standard version can assemble up to three plies. It is available also a special configuration with creel in machine for four plies. For more than four plies it is available the separate creel. Tension can be adjusted independently in each ply. Then, each ply is controlled by a sensor, that in case of failure, lack of yarn or if the preset meters have been reached, transmits an impulse to the yarn cutter (with on/off switch) that cuts all the plies.
This model is designed and built for the big industries. It has one inverter each 6 heads.
It can be used as a normal winder. Each element works as a single unit in single or multiple configurations.
The high quality of the materials used in the building process makes the machine more solid and long lasting in time.
Maintenance is made easily and is limited to the normal cleaning.
Assembly Winder model SESB/6 with 6 heads

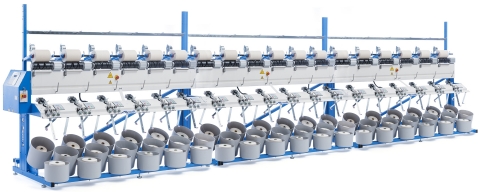

More elements in line

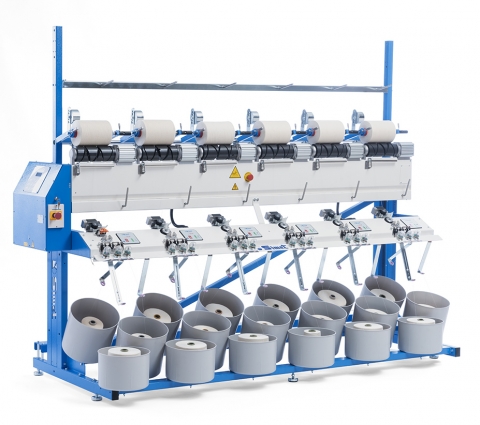

Assemby Winder Model SESB with interlacing device

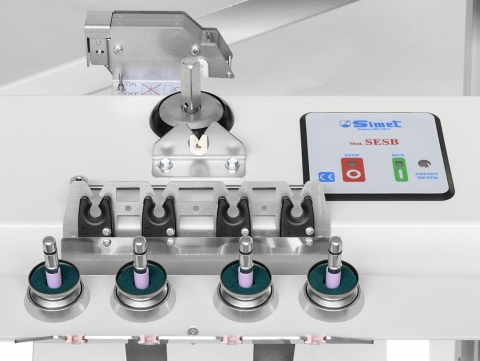

Tensioning / sensor / yarn cutter unit for 4 plies (without caps).

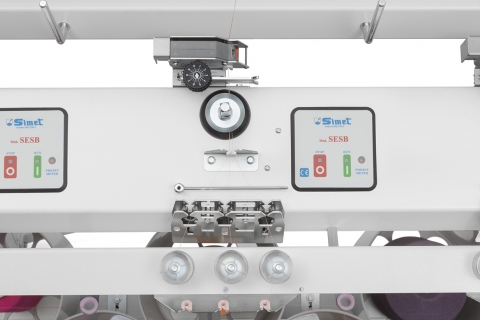

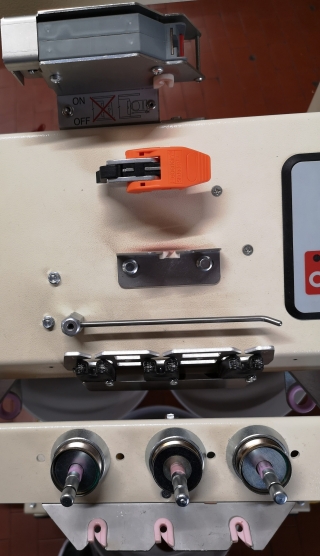

Tensioning / sensor / yarn cutter unit for 3 plies.
